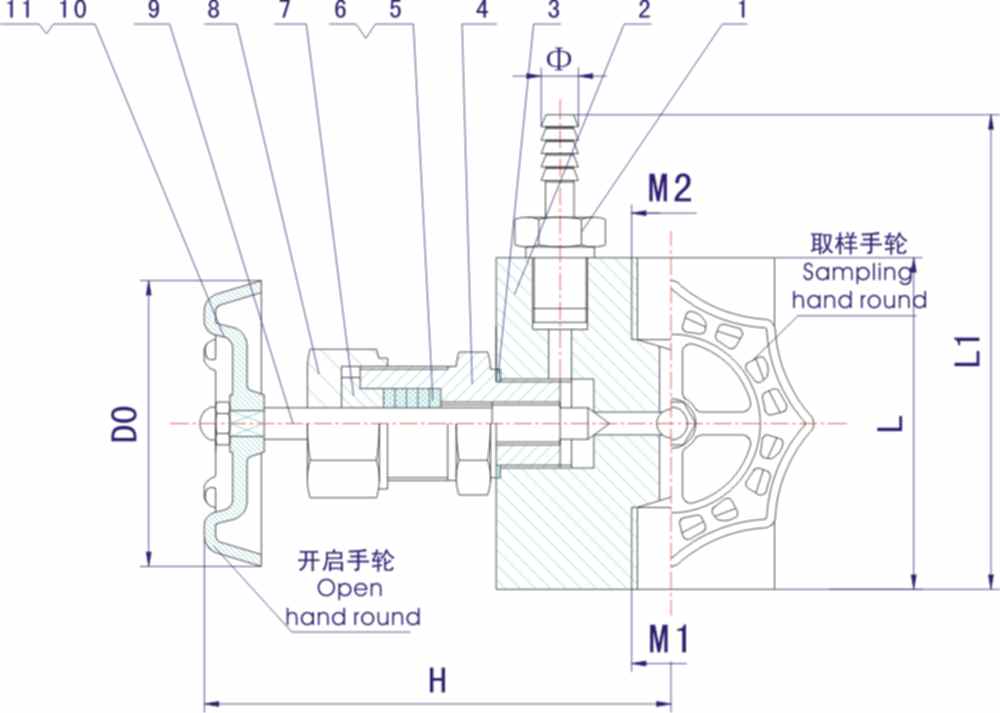

序号
NO.
|
零件名称
Part name
|
材质
Material
|
|
1
|
取样管 Sampling tube
|
20# A105 SS304 SS304L SS316 SS316L
|
|
2
|
阀体 Body
|
20# A105 SS304 SS304L SS316 SS316L
|
|
3
|
阀盖垫片 Bonnet Gasket
|
紫铜(Red copper) PTFE RTFE
|
|
4
|
阀盖Bonnet
|
20# A105 SS304 SS304L SS316 SS316L
|
|
5
|
填料垫 Packing Seat
|
PTFE 柔性石墨(Expanded Graphite)
金属盘根(Matel and Graphite)
|
|
6
|
填料 Packing
|
PTFE 柔性石墨(Expanded Graphite)
|
|
7
|
填料压盖 Packing Gland
|
20# A105 SS304 SS304L SS316 SS316L
|
|
8
|
锁紧螺母 Lock Nut
|
20# A105 SS304 SS304L SS316 SS316L
|
|
9
|
阀杆 Stem
|
20# A105 SS304 SS304L SS316 SS316L
|
|
10
|
手轮Handle
|
20# A105 SS304 SS304L SS316 SS316L
|
|
11
|
带帽螺母 Hooded Nut
|
20# A105 SS304 SS304L SS316 SS316L
|
|
型号
ITEM NO.
|
公称通径
DN
|
M1
|
M2
|
ø
|
L
|
L1
|
H
|
D0
|
|
GMJ11F/H
|
DN6
|
G1/2
|
M20X1.5
|
ø10
|
70
|
153
|
110
|
ø60
|
