序号
NO.
|
零件名称
Part name
|
材质
Material
|
|
1
|
焊接接管 Weld tube
|
20# A105 SS304 SS304L SS316 SS316L
|
|
2
|
平垫圈Plain washer
|
PTFE RTFE铜(copper)
|
|
3
|
连接螺母 Connector Nut
|
20# A105 SS304 SS304L SS316 SS316L
|
|
4
|
阀体 Body
|
20# A105 SS304 SS304L SS316 SS316L
|
|
5
|
填料垫 Packing Seat
|
PTFE 柔性石墨(Expanded Graphite)
金属盘根(Matel and Graphite)
|
|
6
|
填料 Packing
|
PTFE 柔性石墨(Expanded Graphite)
|
|
7
|
填料压盖 Packing Gland
|
20# A105 SS304 SS304L SS316 SS316L
|
|
8
|
锁紧螺母 Lock Nut
|
20# A105 SS304 SS304L SS316 SS316L
|
|
9
|
阀杆 Stem
|
20# A105 SS304 SS304L SS316 SS316L
|
|
10
|
手柄 Handle
|
20# A105 SS304 SS304L SS316 SS316L
|
|
11
|
内六角螺钉 Hexagon Screw
|
20# A105 SS304 SS304L SS316 SS316L
|
|

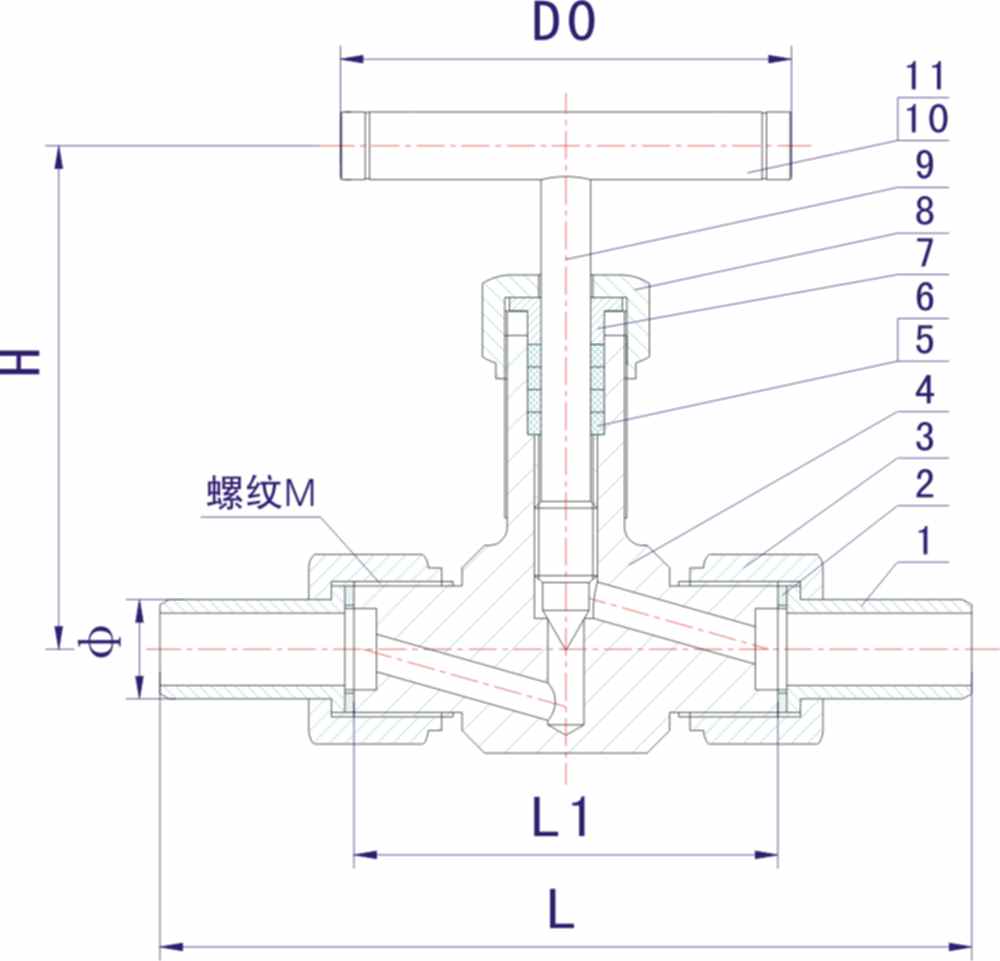

ITEM NO.
|
公称通径 DN
Nominal bore
|
ø
|
L1
|
L
|
H
|
D0
|
|
J23W-160P
|
DN6
|
ø14
|
66
|
140
|
84
|
63
|
|
J23W-160P
|
DN10
|
ø18
|
78
|
160
|
93
|
78
|
